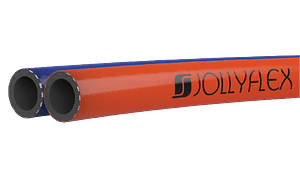

TWIN HOSES

The Air Hose is used to pneumatically activate the remote control unit on blast machines. Also suitable for general welding services, gas cutting application etc.

The welding hose can be used for welding, cutting, shielding and allied processes & can convey LPG, natural gas, oxygen, acetylene and methane for these applications.

Inner Diameter External Diameter Working Pressure Weight
in mm in mm bar psi Lbs/Ft Kg/m
3/16″ 4.8 0.44″ 11.1 20 300 0.16 0.23
1/4″ 6.5 0.53″ 13.5 20 300 0.21 0.31
5/16″ 7.9 0.59″ 15.1 20 300 0.28 0.41
3/8″ 9.5 0.66″ 16.7 20 300 0.32 0.47
  Construction Temperature Range: -40°C (-40°F) to +70°C (+158°F) Tube: Black, smooth with excellent resistance to abrasion; it is anti-static Reinforcement: High strength synthetic cord Cover: black, smooth (wrapped finish) highly abrasion resistant synthetic rubber; it is anti-static. Coils: 20 & 40 meter continuous length.
Inner Diameter External Diameter Working Pressure Weight
in mm in mm bar psi Lbs/Ft Kg/m
3/16″ 4.8 0.413″ 10.5 15 220 0.07 0.105
1/4″ 6.5 0.492″ 12.5 15 220 0.083 0.125
5/16″ 8 0.571″ 14.5 15 220 0.104 0.155
3/8″ 9.5 0.63″ 16 15 220 0.12 0.18
1/2″ 12.7 0.827″ 21 15 220 0.16 0.25

Construction

Temperature Range: -35°C to +70°C.

Tube: Black, smooth synthetic rubber, oil mist resistant.

Reinforcement: High strength synthetic cord

Cover: black, smooth (wrapped finish) long lasting synthetic rubber, weather and abrasion resistant.

Coils: 60 & 120 meter continuous length.
