BLAST SYSTEM PACKAGE

Blast system package includes Blasting machine, 10 mtr Blast Hose, Remote Control Valve, Deadman Handle, Moisture Separator, Twin Hose, TC Venturi Nozzle, Nozzle Holder, Blast Hose Coupling, Quick Pot Coupling, Air Coupling NPT & Whip Check.

Model Capacity300 Ltrs
Height1575mm
Diameter610mm
DescriptionIdeal for continuous production, maximum output, minimum downtime between abrasive refilling. Blast time of approx. 60-75 minutes.

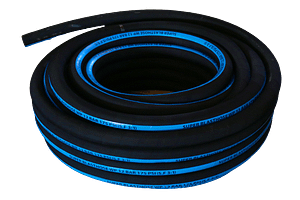

Inner Diameter External Diameter Working Pressure Bursting Pressure
in mm in mm atm psi atm psi
1 1/4″ 32 1 57/64 48 12 175 36 530
 Construction Temperature Range: -40°C (-40°F) to +70°C (+158°F) Tube: Black, smooth with excellent resistance to abrasion; it is anti-static Reinforcement: High strength synthetic cord Cover: black, smooth (wrapped finish) highly abrasion resistant synthetic rubber; it is anti-static. Coils: 20 & 40 meter continuous length.

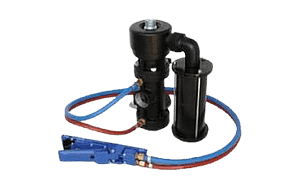

The RMS 100 & RMS 50 is used to control the supply of compressed air to the blast pot and blast hose. The Pneumatic Remote Control System consists of a inlet valve and outlet valve.

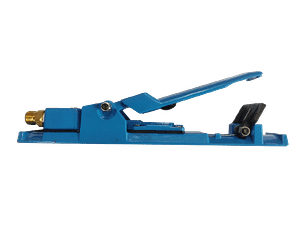

This Pneumatic Control handle is used for remote activation and deactivation of an abrasive blast machine from a larger distance. Moreover it is a personal safety device while handling the blasting equipment.

For heavy duty application with minimum pressure drop requirements, installs at blast machine inlet, supplied with 40 micron polypropylene or brass element with manual drain. Female threaded ports from ½”, 1″, 1¼” & 1½“.

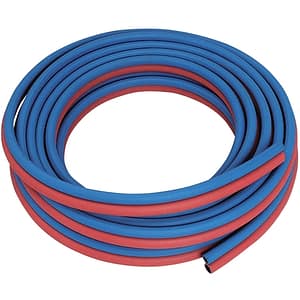

Inner DiameterExternal DiameterWorking PressureWeight
inmminmmbarpsiLbs/FtKg/m
1/4″6.50.53″13.5203000.210.31

Construction

Temperature Range: -40°C (-40°F) to +70°C (+158°F)

Tube: Black, smooth with excellent resistance to abrasion; it is anti-static

Reinforcement: High strength synthetic cord

Cover: black, smooth (wrapped finish) highly abrasion resistant synthetic rubber; it is anti-static.

Coils: 20 & 40 meter continuous length.

MaterialTungsten Carbide
Size9.5 mm Long Venturi
MaterialNylon
Size1 1/4″
Diameter48mm OD

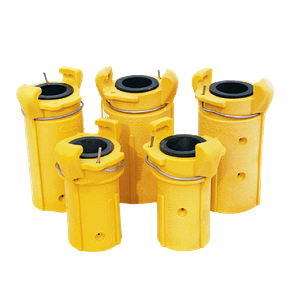

MaterialNylon
Size1 1/4″
Diameter48mm OD

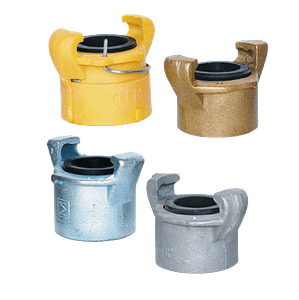

MaterialCFP, CFB, CFA & CFT
Size1 1/4″

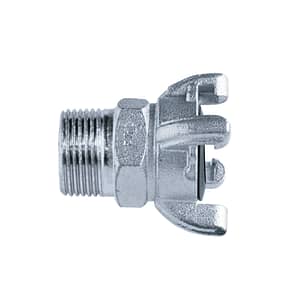

SizeMalleable Iron Part  #Male End
1 1/4″ME 1254 Lug
1/2″, 3/4″, 1″ME 050, ME 075, ME 1002 Lug

Designed for 1/2″ to 1 1/4″ OD hose and for 1 1/2″ to 3″ OD hose.
