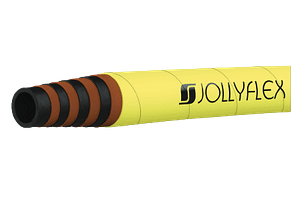

AIR HOSE
Suitable for delivering water and compressed air with light traces of lubrication oil or oil mist in construction sites, blasting sites, quarries and mines.
| Inner Diameter | External Diameter | Working Pressure | |||
| in | mm | in | mm | bar | psi |
| 1/2″ | 13 | 0.90″ | 23 | 20 | 290 |
| 3/4″ | 19 | 1.25″ | 28 | 20 | 290 |
| 1″ | 25 | 1.56″ | 37 | 20 | 290 |
| 1″ | 25 | 1.62″ | 41 | 20 | 290 |
| 1 1/4″ | 32 | 1.84″ | 45 | 20 | 290 |
| 1 1/2″ | 38 | 2.12″ | 50 | 20 | 290 |
| 2 | 51 | 2.71″ | 67 | 20 | 290 |
| 2 1/2″ | 63.5 | 3.42″ | 87 | 20 | 290 |
| 3″ | 76 | 3.73″ | 95 | 20 | 290 |
| 4″ | 102 | 4.87″ | 124 | 20 | 290 |
Construction
Temperature Range: -35°C to +70°C.
Tube: Black, smooth synthetic rubber, oil mist resistant.
Reinforcement: High strength synthetic cord
Cover: black, smooth (wrapped finish) long lasting synthetic rubber, weather and abrasion resistant.
Coils: 60 & 120 meter continuous length.
