BLAST NOZZLES
Take your sandblasting projects to the next level with our Blast Nozzle from Blastech. This tungsten carbide nozzle is an all-in-one solution that has both a long venturi and a short venturi, providing you with the precise performance you need for any sand blasting project. The long venturi helps deliver an intense blast for tough jobs, while the short venturi offers greater control for more intricate tasks. Plus, it includes both angled and curved nozzles for maximum versatility. Get optimal results every time with our Blast Nozzle from Blastech.

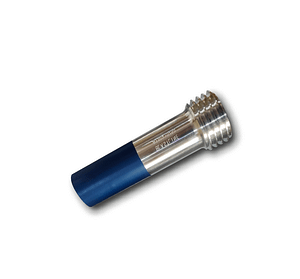

TUNGSTEN CARBIDE ALUMINUM JACKETED BLAST NOZZLES
Get ready to take your sand blasting to the next level with Blastech’s Blast Nozzles! This nozzle is made with tough tungsten carbide and features a long venturi for maximum sandblasting power. It fits most 13mm sandblasting guns, too! Get the most out of your sand blasting– get Blastech’s Blast Nozzle today!
| Material | Tungsten Carbide |
| Size | 13 mm Long Venturi |
Are you looking for a blast nozzles that offers the best results? Look no further than the Blastech 11mm long venturi blast nozzle, crafted from premium tungsten carbide and designed to withstand high-pressure sand blasting. Get professional-level results, faster and easier — get your Blastech nozzle now!
| Material | Tungsten Carbide |
| Size | 11 mm Long Venturi |
Get the job done right with this heavy-duty Blast Nozzles by Blastech. Made of tungsten carbide, this long venturi is specially designed for sand blasting. With an internal diameter of 9.5mm and a high-quality hardened finish, this nozzle is perfect for any professional or DIY project. For quick and easy results, reach for the trusted Blast Nozzle by Blastech every time.
| Material | Tungsten Carbide |
| Size | 9.5 mm Long Venturi |
Take your sandblasting projects to the next level with this Blast Nozzles from Blastech. Expertly crafted from tungsten carbide, this long venturi nozzle is the perfect addition to your toolbox. With its 8mm size, you’ll be able to precisely and effectively blast through tough materials with ease. Durable and easy to use, this nozzle is an indispensable part of any serious sand blasting projects. Experience quality sand blasting results like never before with this Blast Nozzle by Blastech!
| Material | Tungsten Carbide |
| Size | 8 mm Long Venturi |
Are you looking for a blast nozzles that offers the best results? Look no further than the Blastech 11mm long venturi blast nozzle, crafted from premium tungsten carbide and designed to withstand high-pressure sand blasting. Get professional-level results, faster and easier — get your Blastech nozzle now!
| Material | Tungsten Carbide |
| Size | 6 mm Long Venturi |
SHORT VENTURI NOZZLES
COMPLETE BLAST SYSTEM & DATA
| Nozzle Orifice | Nozzle ( psi ) Pressure ( bar ) | 50 3.5 | 60 4.2 | 70 4.9 | 80 5.6 | 90 6.3 | 100 7 | 125 8.5 |
| 3/16” / 5mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 26 0.73 6 4.5 85 | 30 0.84 7 5.3 97 | 33 0.92 8 5.6 111 | 38 1.06 9 6.4 123 | 41 1.15 10 7.1 136 | 45 1.26 10 7.5 150 | 55 1.54 12 9 180 |
| 1/4” / 6mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 47 1.31 11 7.9 152 | 54 1.51 12 9 178 | 61 1.71 14 10.1 200 | 68 1.9 16 11.6 231 | 74 2.08 17 12.4 254 | 81 2.27 18 13.5 280 | 98 2.75 22 16.2 336 |
| 5/16” / 8mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 80 2.16 17 18 255 | 90 2.5 20 20 302 | 100 2.83 25 23 342 | 115 3.16 27 26 380 | 125 3.53 28 28 420 | 140 3.84 31 31 460 | 170 4.71 36 37 552 |
| 3/8” / 9.50mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 110 3.02 25 18 378 | 125 3.53 29 21 433 | 145 4 32 24 490 | 160 4.5 35 27 544 | 175 4.85 40 28.9 596 | 200 5.5 45 33 653 | 235 6.64 52 39.6 784 |
| 7/16” / 11mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 150 4.12 35 24.8 507 | 170 4.76 40 28.5 585 | 200 5.44 45 32.6 655 | 215 6.09 50 36.4 744 | 240 6.73 55 40.1 820 | 255 7.11 60 42.4 896 | 315 8.8 70 50.9 1075 |
| 1/2” / 13mm | Air (CFM) m3/min hp kW Abrasive kg/hr | 200 5.46 45 32.6 657 | 225 6.28 50 37.5 756 | 250 7.06 55 42 856 | 275 7.85 63 46.9 951 | 300 8.85 70 51.8 1050 | 340 9.46 75 56.3 1148 | 410 11.46 95 67.6 1378 |

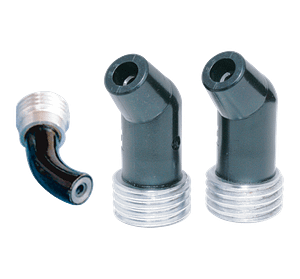

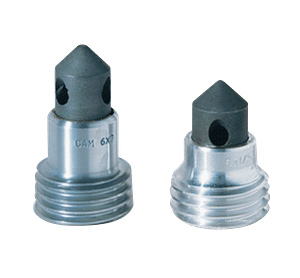

ANGLED & CURVED NOZZLES
These side exit tungsten carbide nozzles are ideal for cleaning inaccessible areas and are available with one, two or three outlets, each in a range of bore sizes. The aluminum jacket protects the liner from ricochet damage. All nozzles are 80 mm long with a 20mm inlet.
Designed to reach in and /or around curved and other profiles where a standard nozzle cannot be used to target abrasive on to a work surface.
