PNEUMATIC AIRLESS PAINTING MACHINE
High-quality, high-volume, high-pressure. Pneumatic airless paint sprayers are the most powerful machines for protective coating. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. These are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications.
| Compatible Material | Protective coating |
| Control type | Fixed Ratio |
| Fluid outlet size | 1 1/4 |
| Fluid outlet size | 1/2 |
| Maximum working Pressure (mpa) | 34.5 |
| Maximum tip size | Variable |
| Stroke Length (in) | 4.75 |

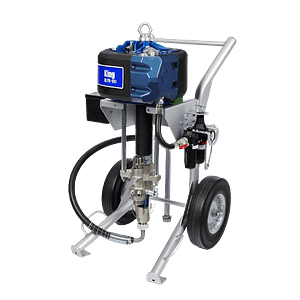

| Package Pressure Ratio (Motor/Lower) | XL6500 motor/220cc Lower |
| Maximum Pressure (PSI) | 5000 |
| Compatible Material | Protective coating |
| Control type | Fixed Ratio |
| Fluid outlet size | 1 1/4 |
| Fluid outlet size | 1 |
| Maximum working Pressure (mpa) | 41.7 |
| Maximum tip size | Variable |
| Stroke Length (in) | 4.75 |
| Package Pressure Ratio (Motor/Lower) | XL6500 motor/220cc Lower |
| Maximum Pressure (PSI) | 6000 |
| Compatible Material | Protective coating |
| Control type | Fixed Ratio |
| Fluid outlet size | 1 1/4 |
| Fluid outlet thread size | 1/2 |
| Maximum working Pressure (mpa) | 50 |
| Maximum tip size | Variable |
| Stroke Length (in) | 4.75 |
| Package Pressure Ratio (Motor/Lower) | XL6500 motor/180cc Lower |
| Maximum Pressure (PSI) | 7250 |
| Motor Size | XL6500cc |
| Max Fluid Pressure | 500 Bar |
| Flow Rate at 40 cpm | 7.6 lpm |
| Standard Mix Ratios | 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 |
| Demand / Duty Cycle | Medium |
| Manual | 3A0420 |

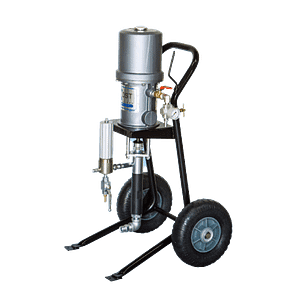

| Technical Data | APP301 (ex-DP30-1) |
| Fluid Pressure Ratio | (30:1) |
| Delivery Liter/Min | 3.7 |
| CC Per Cycle | 61 |
| Maximum Pressure (PSI;BAR) | 3045(210) |
| Air Motor Diameter (Inch;mm) | 4.25(108) |
| Stroke Length (mm) | 102 |
| Air Powered Range (BAR) | (2-7) |
| Technical Data | AKX451 (ex-DXT45-1) |
| Fluid Pressure Ratio | (45:1) |
| Delivery Liter/Min | 15.8 |
| CC Per Cycle | 263 |
| Maximum Pressure (PSI;BAR) | 4568(315) |
| Air Motor Diameter (Inch;mm) | 10(254) |
| Stroke Length (mm) | 127 |
| Air Powered Range (BAR) | (1-7) |
| Technical Data | AKX561 (ex–DXT56-1) |
| Fluid Pressure Ratio | (56:1) |
| Delivery Liter/Min | 13.7 |
| CC Per Cycle | 228 |
| Maximum Pressure (PSI;BAR) | 5685(392) |
| Air Motor Diameter (Inch;mm) | 10(254) |
| Stroke Length (mm) | 127 |
| Air Powered Range (BAR) | (1-7) |
| Technical Data | AKK631(ex-DK63-1) |
| Fluid Pressure Ratio | (63:1) |
| Delivery Liter/Min | 12.2 |
| CC Per Cycle | 203 |
| Maximum Pressure (PSI;BAR) | 6396(441) |
| Air Motor Diameter (Inch;mm) | 10(254) |
| Stroke Length (mm) | 127 |
| Air Powered Range (BAR) | (1-7) |

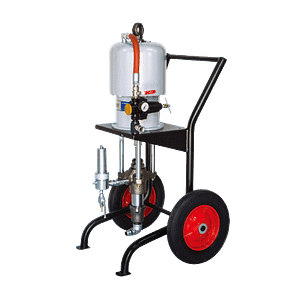

| Technical Data | AKK681(ex-DXT68-1) |
| Fluid Pressure Ratio | (68:1) |
| Delivery Liter/Min | 11.4 |
| CC Per Cycle | 190 |
| Maximum Pressure (PSI;BAR) | 60 |
| Air Motor Diameter (Inch;mm) | 10(254) |
| Stroke Length (mm) | 127 |
| Air Powered Range (BAR) | (1-7) |
| Maximum Pressure (PSI;BAR) | 6903(476) |
| Technical Data | ACN751(ex-N751) |
| Fluid Pressure Ratio | (75:1) |
| Delivery (Liter) / Min | 11.7 |
| CC Per Cycle | 195 |
| Max. Pump Speed / Min | 60 |
| Air Motor Diameter (Inch;mm) | 10.6(270) |
| Stroke Length (mm) | 130mm |
| Air Powered Range (BAR) | 02-Jul |
| Maximum Pressure (PSI;BAR) | 7614(525) |
