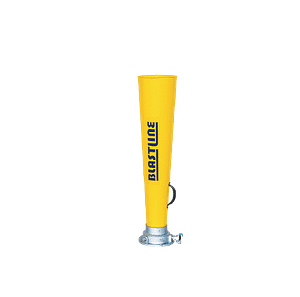

VENTURI BLOWERS
- Used to ventilate explosive and hazardous vapors or fumes safely
- Can be used as blower or exhauster
- No moving parts
- Lightweight cast aluminum base
- Static grounding lug is standard
- Operates on compressed air or steam
- Induction ratios upto 40:1
- Accept flexible duct on diffuser end
- Operating efficiency depends on compressed air volume and pressure
| Overall Length | 30.50″ | NPT Size | 1/2″ | |
| Diameter of Base | 7.31″ | Bolt Circle Diameter | 6.56″ | |
| Diameter Top of Horn | 7.0″ | Base Slot Diameter | 0.4″ |
| Overall Length | 44.25″ | NPT Size | 1″ | |
| Diameter of Base | 11.25″ | Bolt Circle Diameter | 10.50″ | |
| Diameter Top of Horn | 12.5″ | Base Slot Diameter | 0.4″ |
| Overall Length | 46.06″ | NPT Size | 1″ | |
| Diameter of Base | 14.37″ | Bolt Circle Diameter | 13.62″ | |
| Diameter Top of Horn | 14.25″ | Base Slot Diameter | 0.5″ |
