VAPOUR BLASTING MACHINE

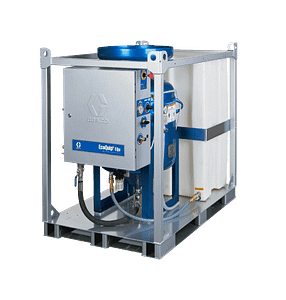

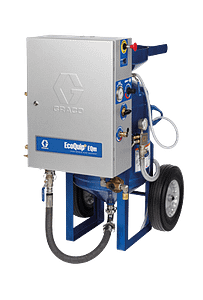

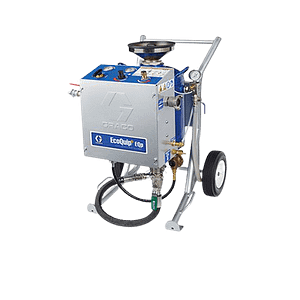

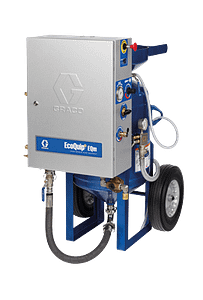

The latest in surface blasting equipment would be Graco’s Vapour Blasting Machine EcoQuip 2 EQp, EcoQuip 2 EQm & EcoQuip 2 EQs the newest technology in vapour abrasive blasting. This machine precisely injects moist abrasive into the blast stream, which can suppress dust levels up to 92%. This is not to be confused with slurry blasting, which is blasting with slurry of air, water and abrasives that ends up wasting too much water and abrasive and creating a significant pool of contaminated water that is difficult to contain and dispose of.

Post Volume | 2.0 cu ft |
Blast Circuit | 5/8 in |
Max Compressed Air Flow Rate | 300 cfm |
Max Blast Pressure | 150 psi |
Water Dose | Not included |
Nozzle Supplied with | #5 & #6 |
Dimensions (L x W x H) | 26.27 x 28.62 x 41.375 in |
Weight – Dry | 220 lbs |
Manual | 3A4802 |

Post Volume | 3.5 cu ft |
Blast Circuit | 1.00 in |
Max Compressed Air Flow Rate | 500 cfm |
Max Blast Pressure | 175 psi |
Water Dose | Not included |
Nozzle Supplied with | #7 |
Dimensions (L x W x H) | 35.1 x 25.7 x 47.4 in |
Weight – Dry | 370 lbs |
Manual | 3A3489 |

Post Volume | 6.5 cu ft |
Blast Circuit | 1.50 in |
Max Compressed Air Flow Rate | 900 cfm |
Max Blast Pressure | 175 psi |
Water Dose | Not included |
Nozzle Supplied with | #8 High Performance |
Dimensions (L x W x H) | 59.76 x 46.26 x 56 in |
Weight – Dry | 1070 lbs |
Manual | 3A3489 |
