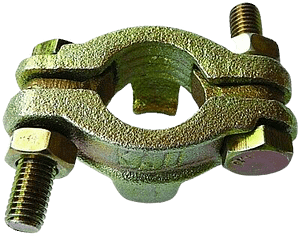

INTERLOCKING CLAMPS
Use of interlocking-clamp hose fittings to replace a damaged clamp. They consist of two halves held together by nuts and bolts. Clamps are strong and durable with fair corrosion resistance.
| Hose I.D. | Bolt | Part no. | Hose O.D. Range |
| 1/2″ | 2 | SL 29 | 22 – 29 mm |
| 3/4″ | 2 | SL 34 | 28 – 34 mm |
| 1″ | 2 | SL 40 | 32 – 40 mm |
| 1 1/4″ | 2 | SL 49 | 39 – 49 mm |
| 1 1/2″ | 2 | SL 60 | 48 – 60 mm |
| 2″ | 2 | SL 76 | 60 – 76 mm |
| 2 1/2″ | 2 | SL 94 | 77 – 94 mm |

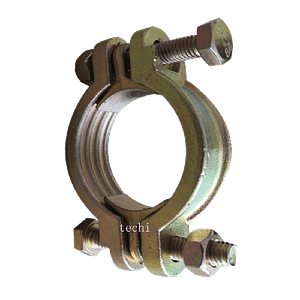

| Hose I.D. | Bolt | Part no. | Hose O.D. Range |
| 1/2″ | 2 | 2 BC 050 | 1 5/16 – 1 1/16 in |
| 3/4″ | 2 | 2 BC 075 | 1 3/16 – 1 5/16 in |
| 1″ | 2 | 2 BC 100 | 1 17/32 – 1 23/32 in |

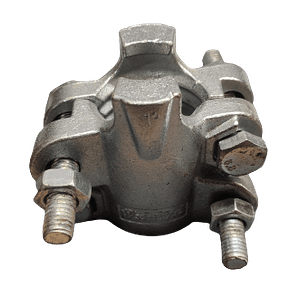

| Hose I.D. | Bolt | Part no. | Hose O.D. Range |
| 1″ | 4 | 4 BC 100 | 1 17/32 – 1 23/32 in |
| 1 1/4″ | 4 | 4 BC 125 | 2 1/8 – 2 3/8 in |
| 1 1/2″ | 4 | 4 BC 150 | 2 3/16 – 2 3/8 in |
| 2″ | 4 | 4 BC 200 | 2 1/2 – 2 25/32 in |
Crimp Clamps
Center Punch Clamps
